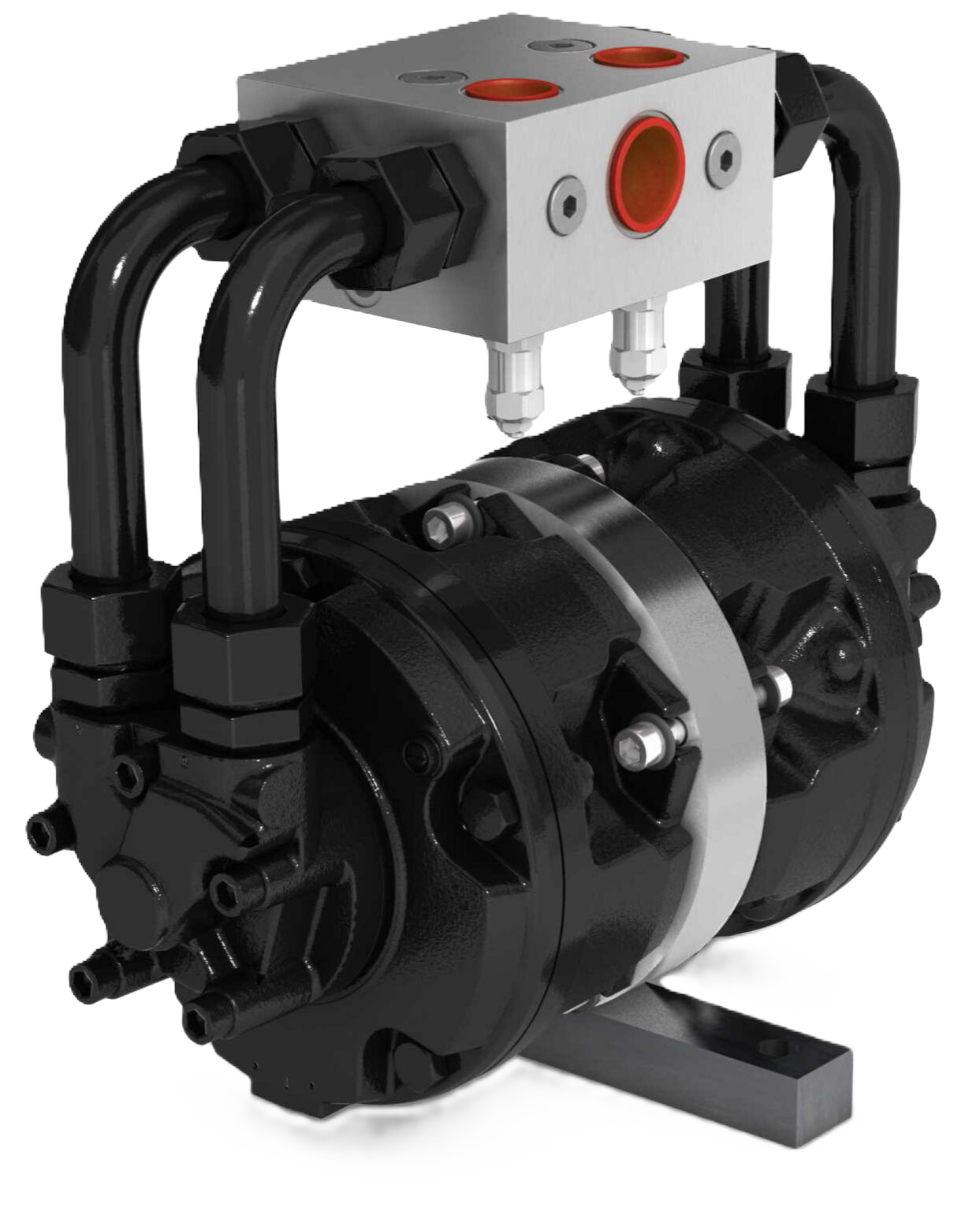

HG Series
Product Description
The HG radial piston flow dividers provide pressure-indipendent division of a flow in two qual parts or eventually in different division ratios. Thanks to the high volumetric efficiency and low speed capability of the radial piston construction type, is possible to obtain dividing precisions up to 99% and excellent controllability even at low oilflows. Integrated reset valves grant misalignments compensation at end-stroke and protection against pressure peaks and cavitation.

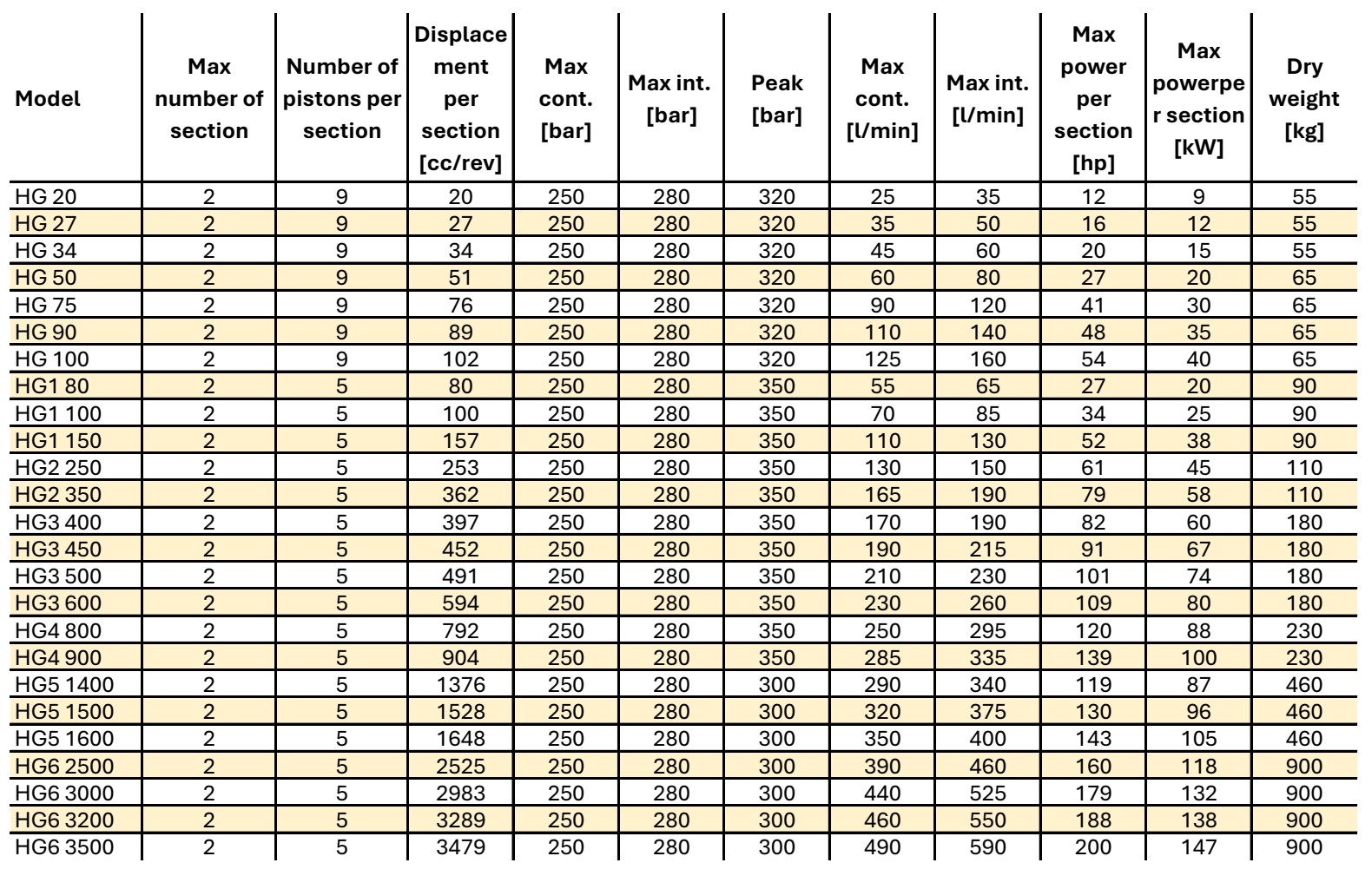

Performance Specifications
Features:
- two stages flow dividers
- accuracy: up to 99%
- wide working range
- add-on relief & cavitation valves

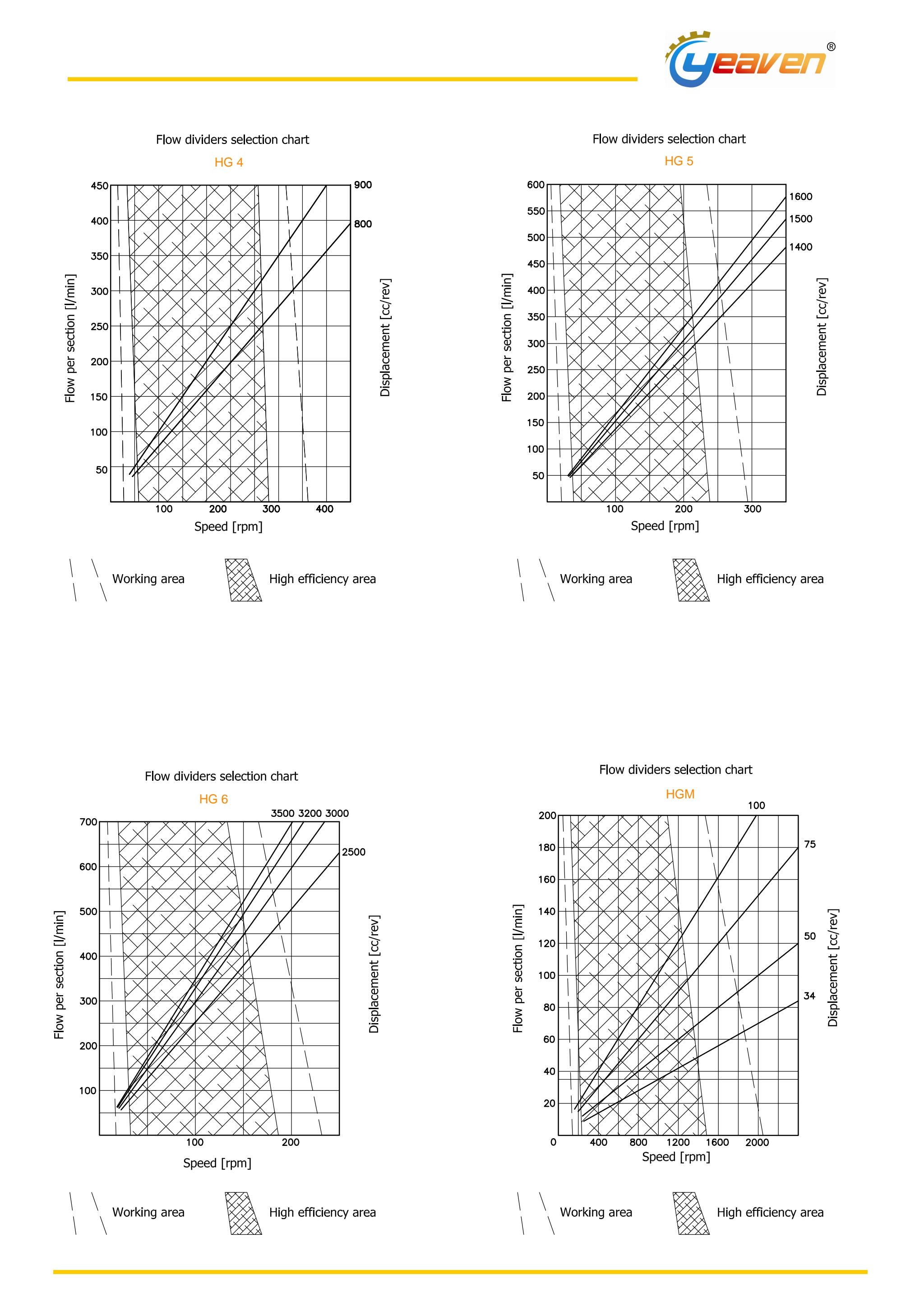

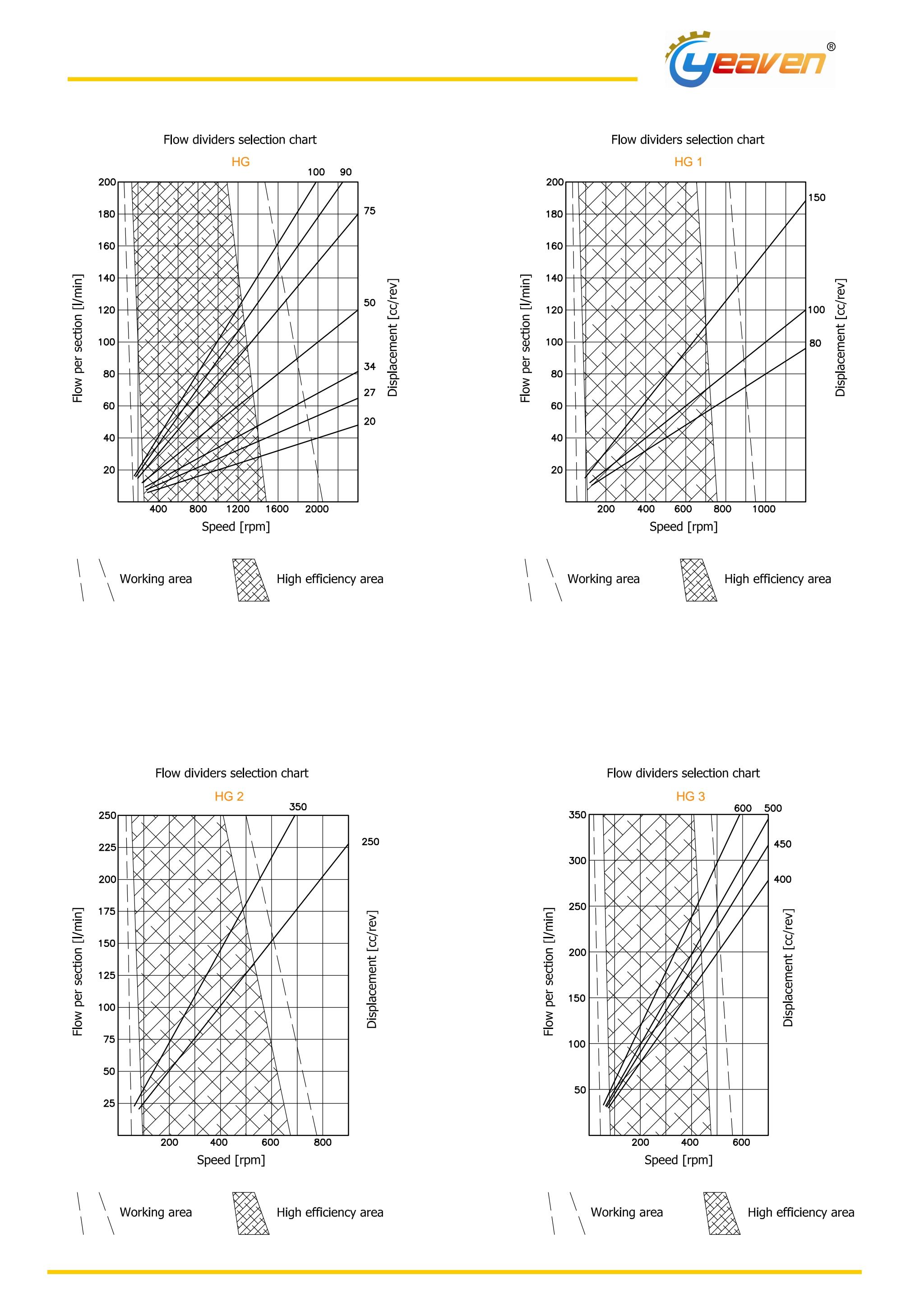

Flow Dividers Selection Chart
