XPMI
Product Description

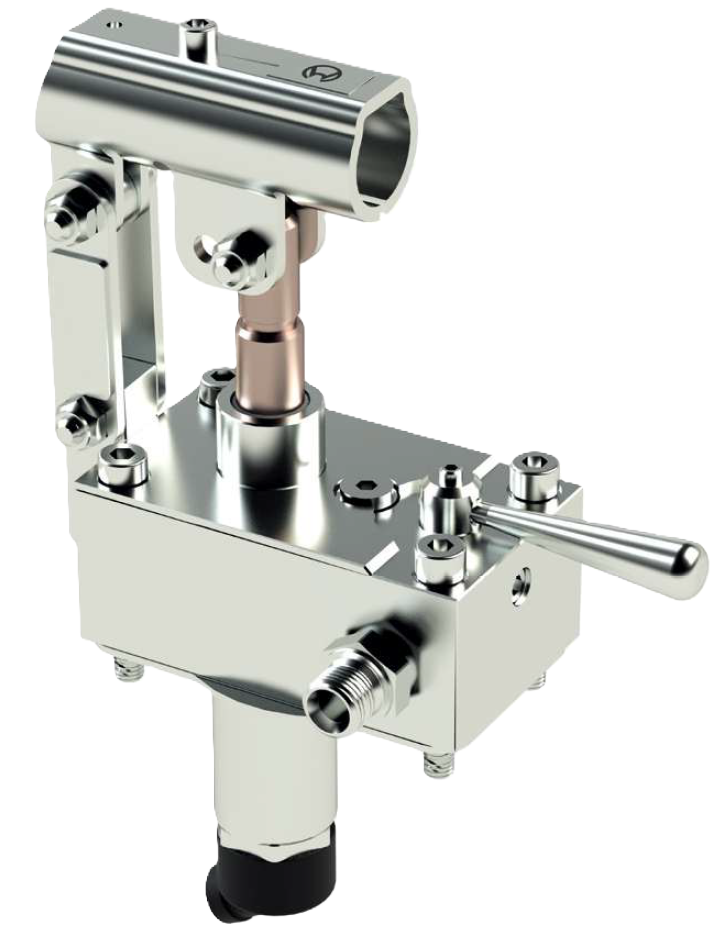

Stainless steel pumps with manual operation and integrated 4/3 diverter. Displacements 12 and 25cc/cycle. Execution for tank fixing.
Performance Specifications
The XPMI series lever operated pumps, made of AISI316L stainless steel, can be installed in circuits fed with different types of fluid. AISI316L stainless steel makes XPMI pumps suitable, among others, for applications in the food or medical industry. The XPMI range includes 12 and 25cc/cycle displacements. The double pumping cycle generates pressure with both lever movements and the pump displacement is therefore to be understood as the sum of the two pumping downwards and upwards.

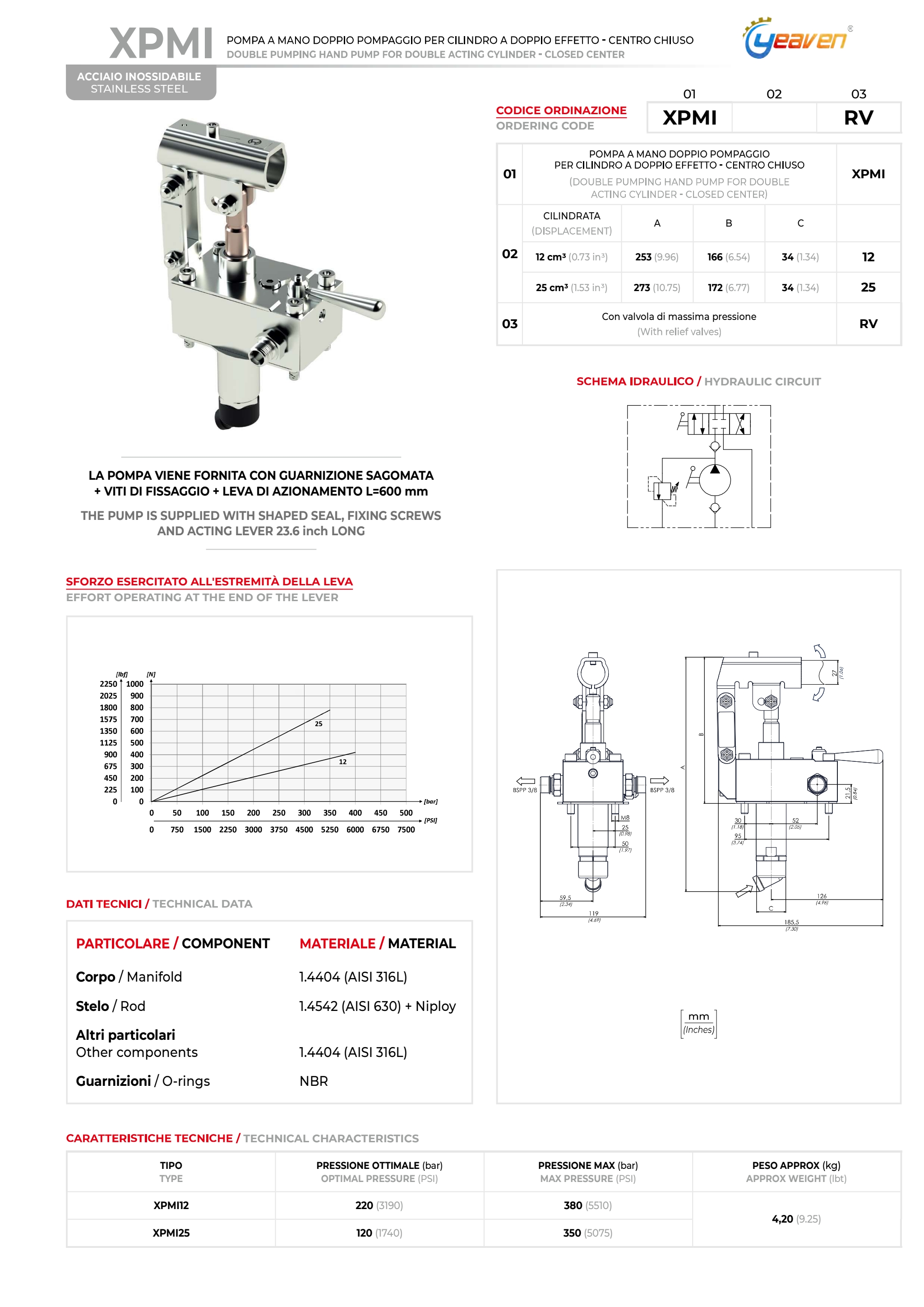

Product Dimensions
