VBCC
Product Description

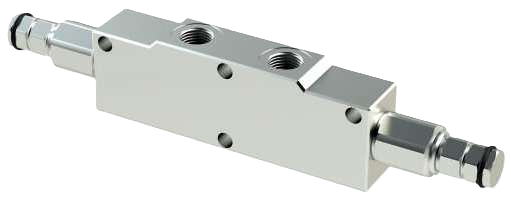

VBCC counterbalance valves it is possible to support a suspended load and control its movement by eliminating vibrations or too fast and dangerous lowering. Equipped with a valve body with BSPP-GAS threaded ports, the VBCC overcenter valves are designed to be installed in-line within the hydraulic system in compliance with the spaces available on the machine.
Performance Specifications
The VBCC series valves are double descent and movement control valves (also known as overcenter). Their action blocks the cylinder and controls its movement in both directions; and are therefore suitable for applications in which it is necessary not only to control the descent phase of a suspended load subjected to gravitational force, but also to guarantee stability in the actuator working position in the presence of bidirectional loads, as occurs for example in the reversible hydraulic motors.

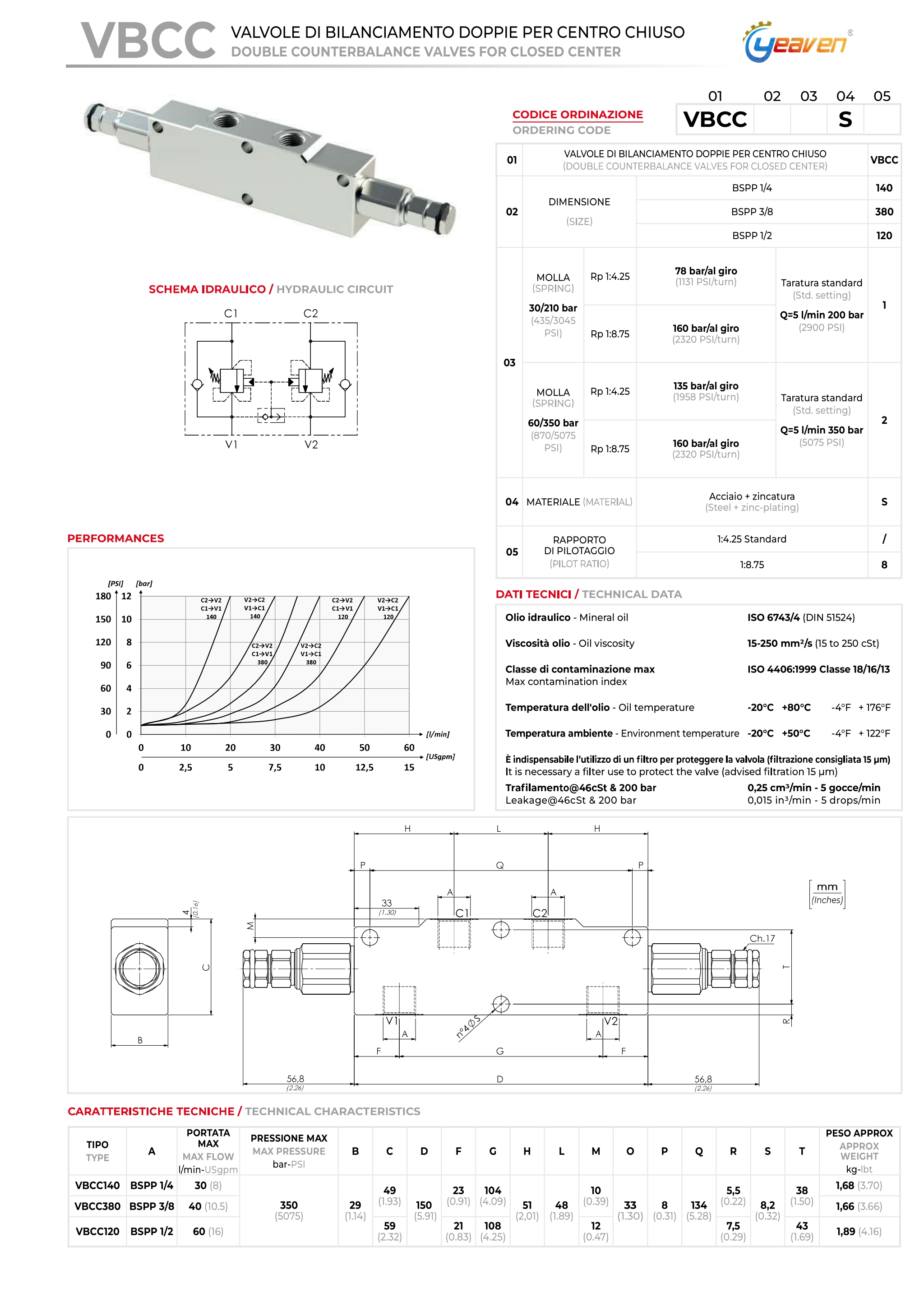

Product Dimensions
